Item No. NW-YC1015L
• Item No.: NW-YC1015L
• Capacity: 725 liter
• Temperature rage: 2- 8℃
• Upright standing style
• Glass door with electrical heating
• Alarm system for failure and exception
• Smart temperature control system
• Built-in USB interface for data storage
• Leading air cooling type for better temperature performance
• Improve energy saving efficiency by 40%
• Better anti-condensation electrical heating glass door
• 7 sensors for high precision of temperature control
• U-disk connected for the temperature data record
Seven temperature probes can ensure high precision of temperature control with nearly no fluctuation and thus can improve safety.
Equipped with a USB export interface, which can be used for storing data from the last month to the current month automatically in PDF format.
With a U-disk connected, the temperature data can be stored continuously and automatically, in more than 2 years.
The interior lighting system with double LED lights ensures high visibility inside the cabinet.
A test port is available for bringing convenience to users in testing temperature inside the cabinet.
Large capacity of 1015L for maximum storage convenience to store vaccine, drugs, reagents, and other lab / medical materials.
100% CFC free design for environment friendly with no ozone-damaging chemicals.

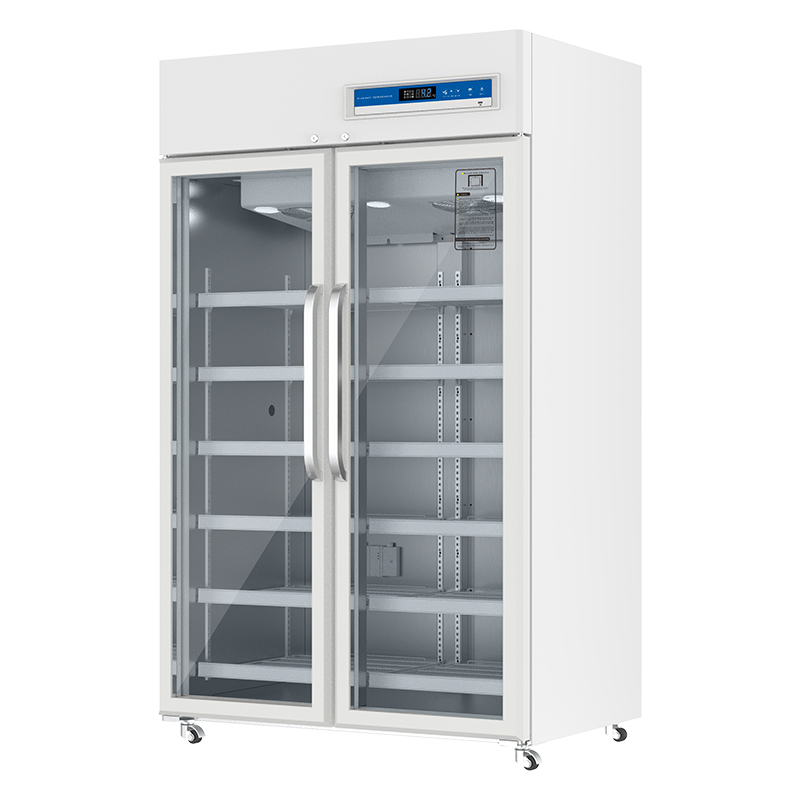

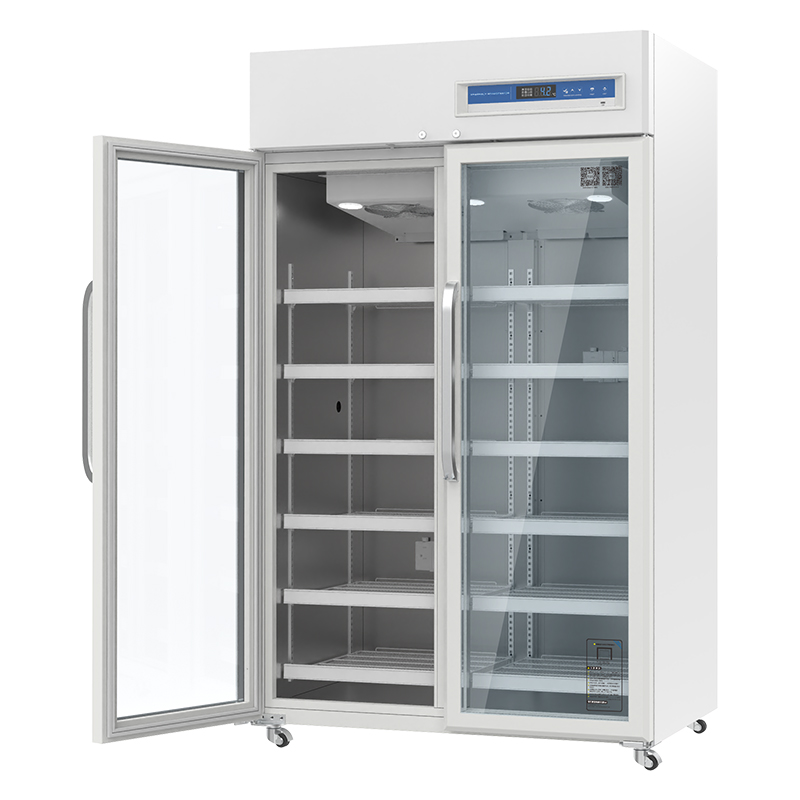

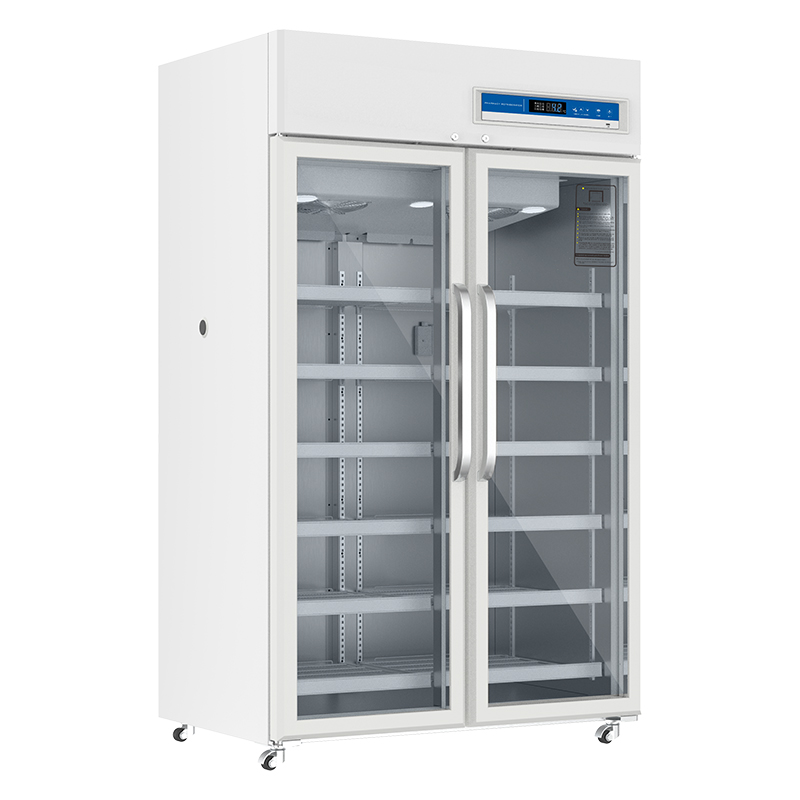

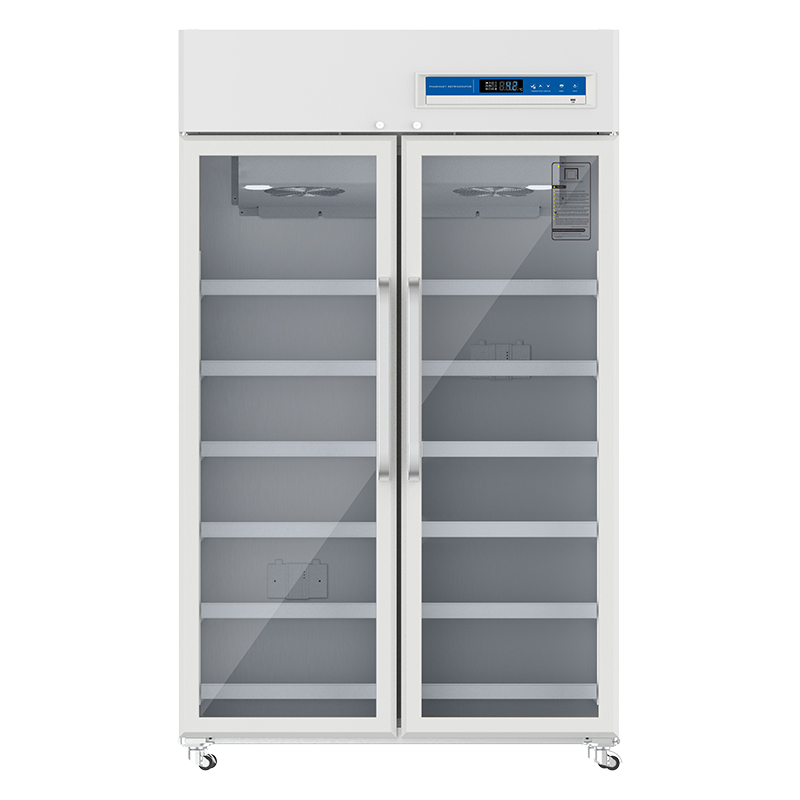

Nenwell 2ºC~8ºC Pharmacy refrigerator NW-YC1015L is pharmaceutical grade refrigerators for vaccines, storing sensitive materials in pharmacies, medical offices, laboratories, clinics, or scientific institutions. It is produced in quality and durability, and meets the stringent guidelines demands for medical and laboratory grade. NW-YC1015L medical fridge provides you with 1015L of interior storage with adjustable 12 shelves for high efficient capacity storage. This medical / lab refrigerator is equipped with high -precision microcomputer temperature control system and ensures the temperature range in 2ºC~8ºC. And it comes with 1 high-brightness digital temperature display ensuring the display precision in 0.1ºC.
Leading air cooling refrigeration system
NW-YC1015L pharmacy refrigerator is equipped with multi-duct vortex refrigeration system and finned evaporator, which can prevent the frost completely and improve the temperature uniformity to a large extent. The high-efficiency air-cooling condenser and finned evaporator of this medical grade refrigerator ensures fast refrigeration.
Intelligent audible and visible alarm system
This vaccine refrigerator comes with multiple audible and visible alarm functions, including high/low temperature alarm, power failure alarm, low battery alarm, door ajar alarm, high air temperature alarm, and communication failure alarm.
Superb technology design
The electrical heating + LOW-E design with double consideration can achieve a better anti-condensation effect for the glass door. And this pharmaceutical fridge is designed with high-quality shelves made from PVC-coated steel wire with tag card for easily cleaning. And you can have an invisible door handle, ensuring elegance of appearance.
Model No | Temp. Rang | External Dimension(mm) | Capacity(L) | Refrigerant | Certification |
NW-YC55L | 2~8ºC | 540*560*632 | 55 | R600a | CE/UL |
NW-YC75L | 540*560*764 | 75 | |||
NW-YC130L | 650*625*810 | 130 | |||
NW-YC315L | 650*673*1762 | 315 | |||
NW-YC395L | 650*673*1992 | 395 | |||
NW-YC400L | 700*645*2016 | 400 | UL | ||
NW-YC525L | 720*810*1961 | 525 | R290 | CE/UL | |
NW-YC650L | 715*890*1985 | 650 | CE/UL (During application) | ||
NW-YC725L | 1093*750*1972 | 725 | CE/UL | ||
NW-YC1015L | 1180*900*1990 | 1015 | CE/UL | ||
NW-YC1320L | 1450*830*1985 | 1320 | CE/UL (During application) | ||
NW-YC1505L | 1795*880*1990 | 1505 | R507 | / |
2~8ºC Laboratory Refrigerator / Pharmacy Refrigerator 1015L | |
Model | NW-YC1015L |
Capacity(L) | 1015 |
Internal Size(W*D*H)mm | 1070*670*1515 |

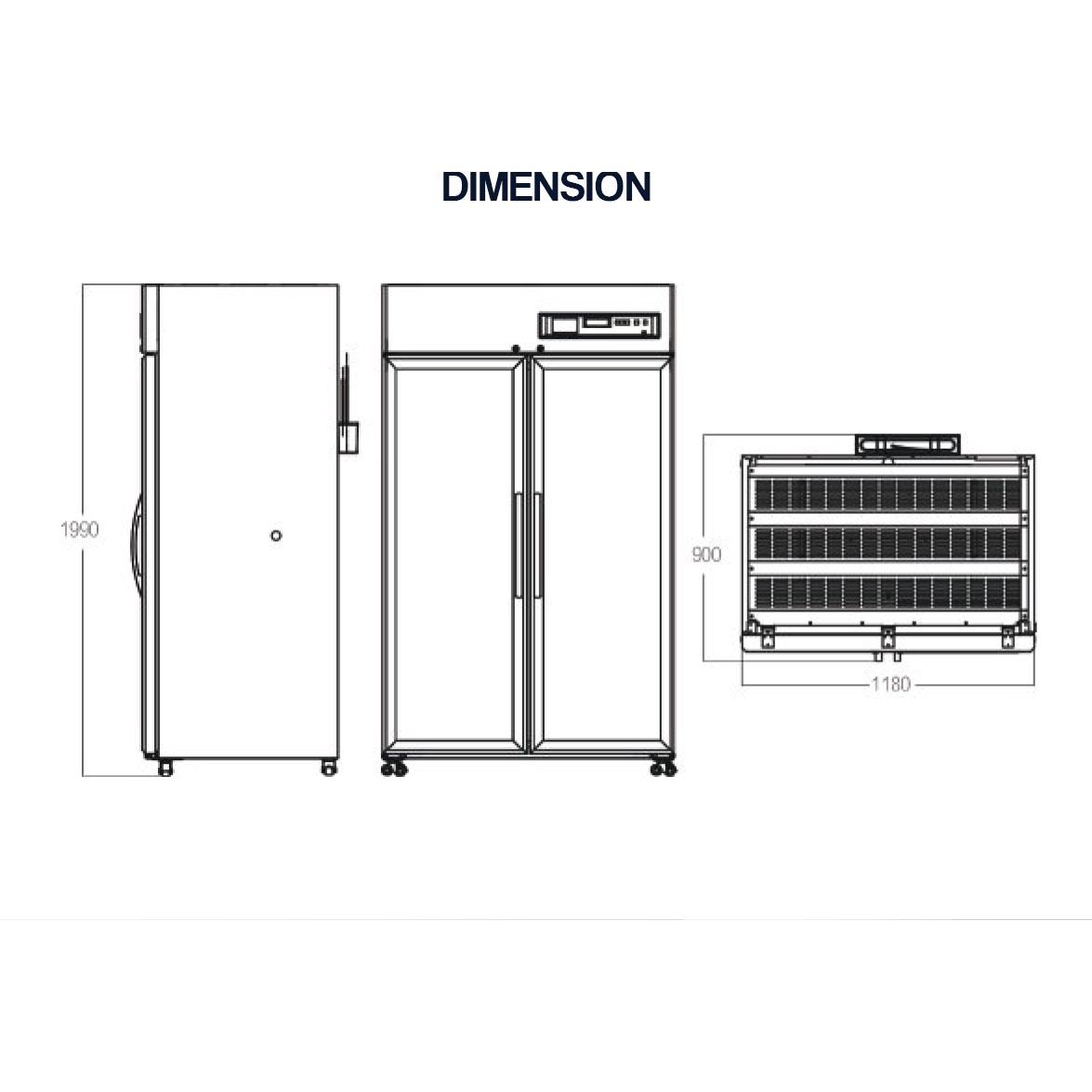

External Size(W*D*H)mm | 1180*900*1990 |
Package Size(W*D*H)mm | 1313*988*2168 |
NW/GW(Kgs) | 185/262 |
Performance | |
Temperature Range | 2~8ºC |
Ambient Temperature | 16-32ºC |
Cooling Performance | 5ºC |
Climate Class | N |
Controller | Microprocessor |
Display | Digital display |
Refrigeration | |
Compressor | 1pc |
Cooling Method | Air cooling |
Defrost Mode | Automatic |
Refrigerant | R290 |
Insulation Thickness(mm) | L/R/B:55,U:56,D:58 |
Construction | |
External Material | PCM |
Inner Material | Aluminum plate with spraying (optional Stainless steel) |
Shelves | 12 (coated steel wired shelf) |
Door Lock with Key | Yes |
Lighting | LED |
Access Port | 1pc. Ø 25 mm |
Casters | 4+(2 with brake) |
Data Logging/Interval/Recording Time | USB/Record every 10 minutes/2 years |
Door with Heater | Yes |
Alarm | |
Temperature | High/Low temperature, High ambient temperature, Condenser overheating |
Electrical | Power failure, Low battery |
System | Sensor failure,Door ajar, Built-in datalogger USB Failure, Communication failure |
Accessories | |
Standard | RS485, Remote alarm contact, Backup battery |
2~8ºC Laboratory Refrigerator / Pharmacy Refrigerator 1015L | |
Model | NW-YC1015L |
Capacity(L) | 1015 |
Internal Size(W*D*H)mm | 1070*670*1515 |
External Size(W*D*H)mm | 1180*900*1990 |
Package Size(W*D*H)mm | 1313*988*2168 |
NW/GW(Kgs) | 185/262 |
Performance | |
Temperature Range | 2~8ºC |
Ambient Temperature | 16-32ºC |
Cooling Performance | 5ºC |
Climate Class | N |
Controller | Microprocessor |
Display | Digital display |
Refrigeration | |
Compressor | 1pc |
Cooling Method | Air cooling |
Defrost Mode | Automatic |
Refrigerant | R290 |
Insulation Thickness(mm) | L/R/B:55,U:56,D:58 |
Construction | |
External Material | PCM |
Inner Material | Aluminum plate with spraying (optional Stainless steel) |
Shelves | 12 (coated steel wired shelf) |
Door Lock with Key | Yes |
Lighting | LED |
Access Port | 1pc. Ø 25 mm |
Casters | 4+(2 with brake) |
Data Logging/Interval/Recording Time | USB/Record every 10 minutes/2 years |
Door with Heater | Yes |
Alarm | |
Temperature | High/Low temperature, High ambient temperature, Condenser overheating |
Electrical | Power failure, Low battery |
System | Sensor failure,Door ajar, Built-in datalogger USB Failure, Communication failure |
Accessories | |
Standard | RS485, Remote alarm contact, Backup battery |
