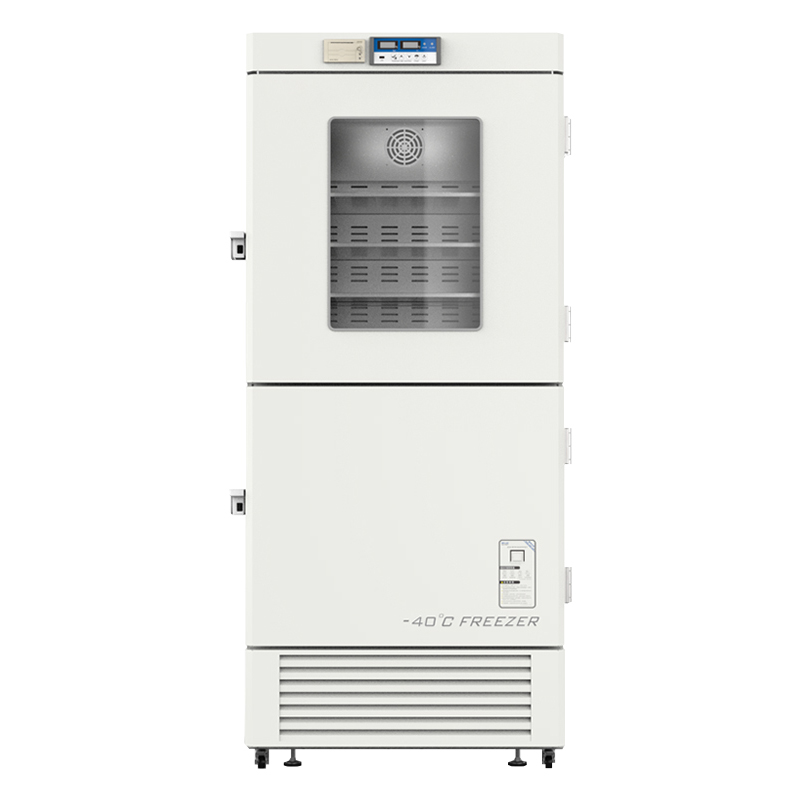

Large Combo Refrigerator Combined with Freezer for Laboratory and Hospital
Item no. NW-YCDFL519
Function Features of Large Combo Refrigerator and Hospital Refrigerated Cabinet NW-YCDFL519
Combination refrigerator freezer with upper 2°C ~ -8°C and lower-10~-26ºC
Separate control of upper refrigeration chamber and lower freezing chamber with separate compressors
Direct cooling and electronic temperature control for fast refrigeration and constant temperature
Equipped with sheet metal refrigerated drawers and acrylic plates
Digital temperature display to control temperature precisely and monitor operating status clearly
Ensure safe sample storage with inter-room independent door lock and independent external padlock
The inner material with stainless steel and three layers stainless steel clapboard
Tube-type condenser and built-in type evaporator work well to keep the temperature in the cabinet

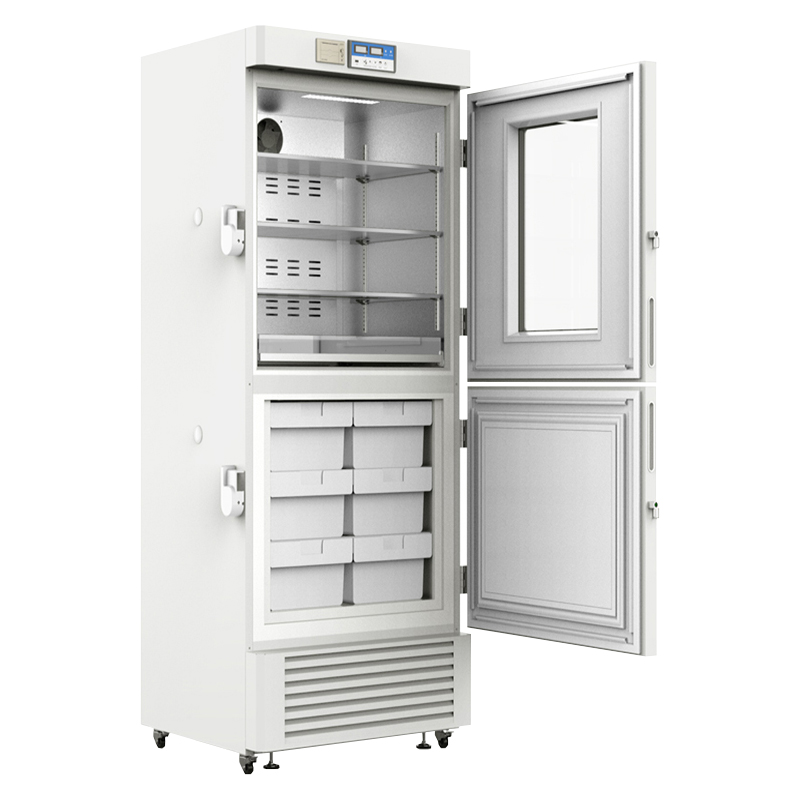

The lower freezing chamber is equipped with drawers and the refrigeration chamber is equipped with steel wire shelves
LED lighting in the cabinet of the combination refrigerator freezer provides great visibility
The combination refrigerator freezer is equipped with casters at the bottom for conveniently movement and placement
Standard with Build-in USB datalogger for temperature data recording
Descriptions
Datasheets
Downloads
Large Combo Refrigerator and Hospital Refrigerated Cabinet (NW-YCDFL519)
Large Combo Refrigerator and Hospital Refrigerated Cabinet NW-YCDFL519, dedicated by professional manufacturer Nenwell factory being well up to international standards for medical and laboratory, with dimensions 910*740*1972 mm, holding 519L / 137 gal inner capacity.
• High-efficiency refrigerating system
• High-precision computerized temperature control system
• Comprehensive security system
• Separate control of upper refrigeration and lower freezer
• Direct cooling and electronic temperature control
|| High efficiency || Energy - saving || Safe and reliable || Smart control ||
Nenwell 2ºC~8ºC/-10ºC~-26ºC Large Combo Refrigerator and Hospital Refrigerated Cabinet NW-YCDFL519 comes with upper refrigeration and lower freezing separately control. This fridge freezer combo adopts 2 compressors and CFC-free refrigeration, ensuring high-efficiency and energy-saving. And it can ensure fast refrigeration and separately control of upper refrigeration chamber and lower freezing chamber. We design the thermal insulation with thicker insulation layer and CFC-free polyurethane foam technology for better insulation effect. The digital temperature display can indicate operating status clearly, and you can set the high temperature or low temperature alarm points regarding to your needs.
High-efficiency Refrigerating System
This combination refrigerator freezer is equipped with high-efficiency compressors for upper refrigeration chamber and lower freezing chamber. And the refrigerant is environmentally friendly, which can ensure energy-saving and high-efficiency. The CFC polyurethane foaming technology and thicker insulation layer cam improve the effect of thermal insulation.
High-precision Computerized Temperature Control System
The temperature control system of this combination refrigerator freezer can display the humidity and temerature independently. And you are able to check and view the operating status clearly on the display. This medical grade refrigerator freezer allows you to set the temperature freely with upper temperature in the range of 2ºC~8ºC and lower temperature in a range of -10ºC~-26ºC.
Comprehensive Security System
It is also a secure vaccine storage refrigerator freezer for the in-built 8 audible and visual alarm system, including high ambient temperature alarm, high\low temperature alarm, sensor failure alarm, communication failure (USB) data download failure alarm, low battery alarm, door ajar alarm, power off alarm, and data logging function not enabled alarm, which ensure safer sample storage.
Technical Specificaion of Laboratory Refrigerator
NW-YCDFL519
| Model | NW-YCDFL519 |
| Cabinet Type | Upright |
| Capacity(L) | 519,R:323,F:196 |
| Internal Size(W*D*H)mm | R:750*610*740,F:650*560*565 |
| External Size(W*D*H)mm | 910*740*1972 |
| Package Size(W*D*H)mm | 990*855*2140 |
| NW/GW(Kgs) | 186/215 |
| Temperature Range | R:2~8ºC,F:-10~-40ºC |
| Ambient Temperature | 16-32ºC |
| Cooling Performance | R:5ºC, F:-40ºC |
| Climate Class | N |
| Controller | Microprocessor |
| Display | Digital display |
| Compressor | 2pcs |
| Cooling Method | R: Forced air cooling , F:Direct cooling |
| Defrost Mode | R:Automatic, F:Manual |
| Refrigerant | R600a |
| Insulation Thickness(mm) | R:50, F:100 |
| External Material | Spraying steel plate |
| Inner Material | Stainless steel |
| Shelves | R:3+1(stainless steel),F:6(ABS) |
| Door Lock with Key | Y |
| Access Port | 2pcs. Ø 25 mm |
| Casters | 4(2 caster with brake) |
| High/low temperature | Y |
| High ambient temperature | Y |
| Door ajar | Y |
| Power failure | Y |
| Sensor error | Y |
| Low battery | Y |
| Communication failure | Y |
| Power Supply(V/HZ) | 220-240/50 |
| Power(W) | 306 |
| Power Consumption(KWh/24h) | 3.76 |
| Rated Current(A) | 2.38 |
| RS485 | Y |
| Model | NW-YCDFL519 |
| Cabinet Type | Upright |
| Capacity(L) | 519,R:323,F:196 |
| Internal Size(W*D*H)mm | R:750*610*740,F:650*560*565 |
| External Size(W*D*H)mm | 910*740*1972 |
| Package Size(W*D*H)mm | 990*855*2140 |
| NW/GW(Kgs) | 186/215 |
| Temperature Range | R:2~8ºC,F:-10~-40ºC |
| Ambient Temperature | 16-32ºC |
| Cooling Performance | R:5ºC, F:-40ºC |
| Climate Class | N |
| Controller | Microprocessor |
| Display | Digital display |
| Compressor | 2pcs |
| Cooling Method | R: Forced air cooling , F:Direct cooling |
| Defrost Mode | R:Automatic, F:Manual |
| Refrigerant | R600a |
| Insulation Thickness(mm) | R:50, F:100 |
| External Material | Spraying steel plate |
| Inner Material | Stainless steel |
| Shelves | R:3+1(stainless steel),F:6(ABS) |
| Door Lock with Key | Y |
| Access Port | 2pcs. Ø 25 mm |
| Casters | 4(2 caster with brake) |
| High/low temperature | Y |
| High ambient temperature | Y |
| Door ajar | Y |
| Power failure | Y |
| Sensor error | Y |
| Low battery | Y |
| Communication failure | Y |
| Power Supply(V/HZ) | 220-240/50 |
| Power(W) | 306 |
| Power Consumption(KWh/24h) | 3.76 |
| Rated Current(A) | 2.38 |
| RS485 | Y |
